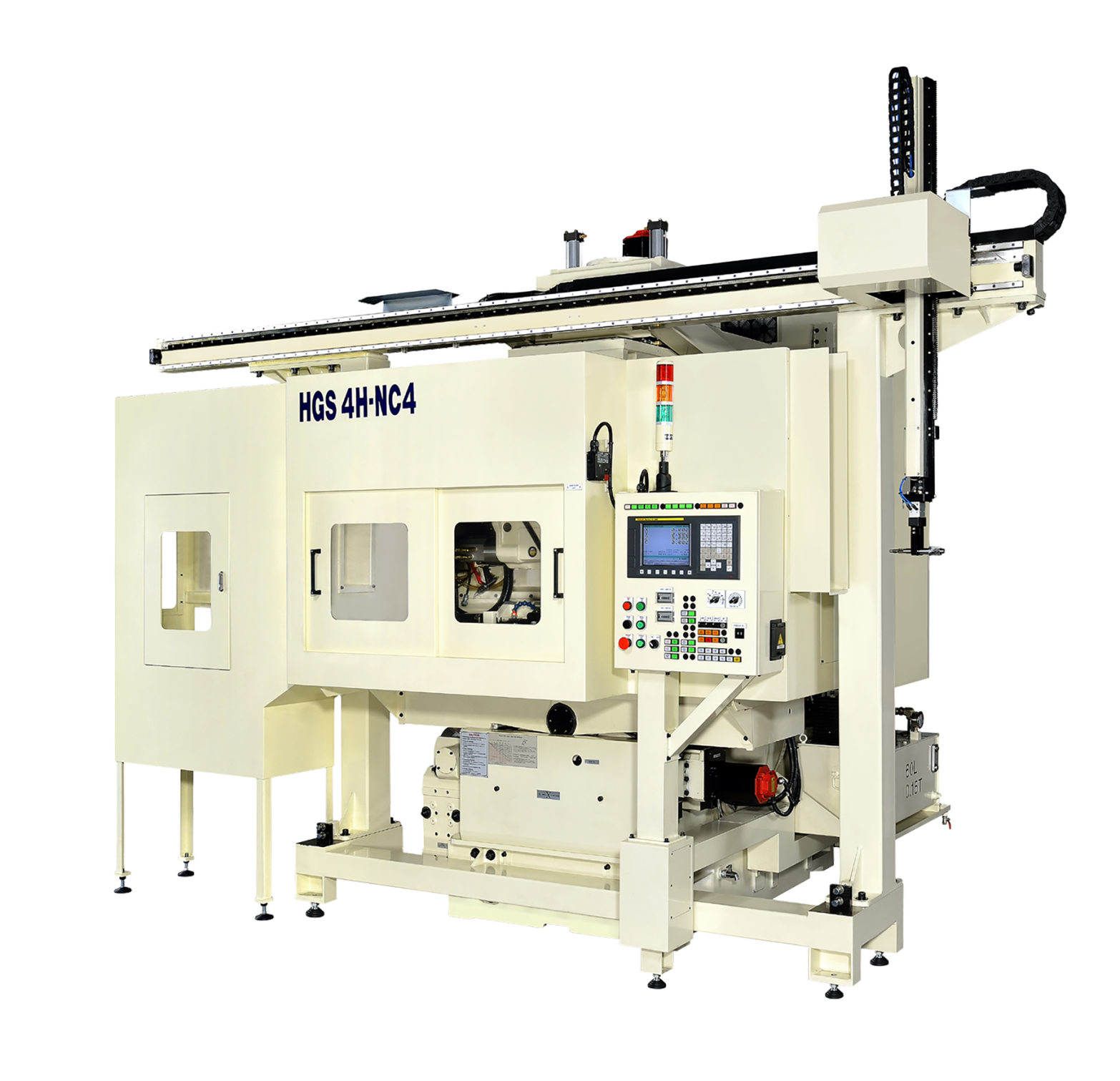

| HGS 4H-NC4 / NC5 Specifications | ||
| Articles | Description | Capacities |
| Works | Max. Module | 1~8 mm |
| Max. O.D. | 25~400 mm | |
| Max. Works Width | 150 mm | |
| Max. Works Length | 700 mm | |
| Axial axis | Max. Infeed | ±75 mm |
| Tangential axis | Max. Infeed | ±6 mm |
| Cutter | Max. Cutter Width | 50 mm |
| Max. O.D. | 265 mm | |
| Cutter Head Swivel | ±20º | |
| Max. rpm | 50~400 mm | |
| Cutter Bore Dia | 63.5 mm | |
| Cutting Method | ● Conventional ● Diagonal ● Under-pass ● Plunge | |
| Specifications | ||||
| Model No. | HGS 4H-NC5 | HGS 4H-NC4 | HGS 250-NC3 | |
| X axis | ● | ● | ||
| C axis | ● | ● | ||
| Z axis | ● | ● | ● | |
| Y axis | ● | ● | ● | |
| B axis | ● | ● | ||
| AXIS DESCRIPTION |
● X axis：Work table motion
● C axis：Work table motion
● Z axis：Cutter feeding stroke ● Y axis：Cutter head swivel angle ● B axis：Crowning and taper motion |
|||
